Fluorescent Emergency Ballasts

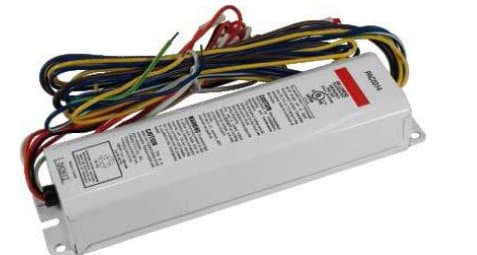

Fluorescent Emergency Lighting Ballasts (BAL Series)
120/277V fully automatic fluorescent emergency lighting ballasts compatible with most one- to four-lamp electronic standard and dimming AC ballasts, with battery, charger, and inverter circuit included for 90 minutes of emergency operation.
- 120/277V fully automatic operation
- 280mA charging current
- 24-hour recharging time
- 90 minutes of emergency operation
- Wireway or fixture mount
- Battery, charger, inverter circuit included
Pricing by quote
Pricing depends on quantity, finish, options, and delivery. Send the items and quantities you need — most quotes come back the same business day.
Models & Specifications
| Item # | Model |
|---|---|
| JWBAL500 | 350-450 lumens, 2.4V battery, 9.6 Wh |
| JWBAL650C | 300-750 lumens, 3.6V battery, 14.4 Wh |
| JWBAL650C-2PIN | 2-Pin compact lamp version (GX23/G24D bases) |
| JWBAL650C-4PIN | 4-Pin compact lamp version |
| JWBAL700 | 600-700 lumens, 3.6V battery, 14.4 Wh |
| JWBAL1400 | 1100-1400 lumens, 6.0V battery, 24.4 Wh |
| JWBAL3000 | 1450-3500 lumens, 14.4V battery, 40.0 Wh |
Reference the item numbers above when requesting a quote. Custom sizes and configurations available on request.
